Stainless Steel 304/304L Industrial Durable Welded Coiled Tubing for Downhole Tools
You are here: Home » Products » Welded Coiled Tubing » Stainless Steel 304/304L Industrial Durable Welded Coiled Tubing for Downhole Tools
Share to:

Stainless Steel 304/304L Industrial Durable Welded Coiled Tubing for Downhole Tools

Availability:
Quantity:

Grade: TP304/L, 316/L, 2205, 2507, Alloy825/ N08825, Alloy625 /N06625, Alloy400/ N04400,etc

Type: Welded

Hole count: Single/Multi Core

Outer Diameter: 4mm-25mm

Wall Thickness: 0.3mm-2.5mm

Length : According to customers' needs, up to 10000m


Standard: ASTM A269/A213/A789/B704/B163,etc.

Certificate: ISO/CCS/DNV/BV/ABS, etc.

Inspection: NDT; Hydrostatic test

Package: Wooden or iron reel


Material

ASTM A269 Chemical Composition % Max

C

Mn

P

S

Si

Cr

Ni

Mo

N B

Nb

Ti

TP304

0.08

2

0.045

0.03

1

18.0-20.0

8.0-11.0

^

^

^.

^

TP304L

0.035

2

0.045

0.03

1

18.0-20.0

8.0-12.0

^

^

^

^

TP316

0.08

2

0.045

0.03

1

16.0-18.0

10.0-14.0

2.00-3.00

^

^

^

TP316L

0.035

2

0.045

0.03

1

16.0-18.0

10.0-15.0

2.00-3.00

^

^

^

TP321

0.08

2

0.045

0.03

1

17.0-19.0

9.0-12.0

^

^

^

5C -0.70

TP347

0.08

2

0.045

0.03

1

17.0-19.0

9.0-12.0



10C -1.10

^

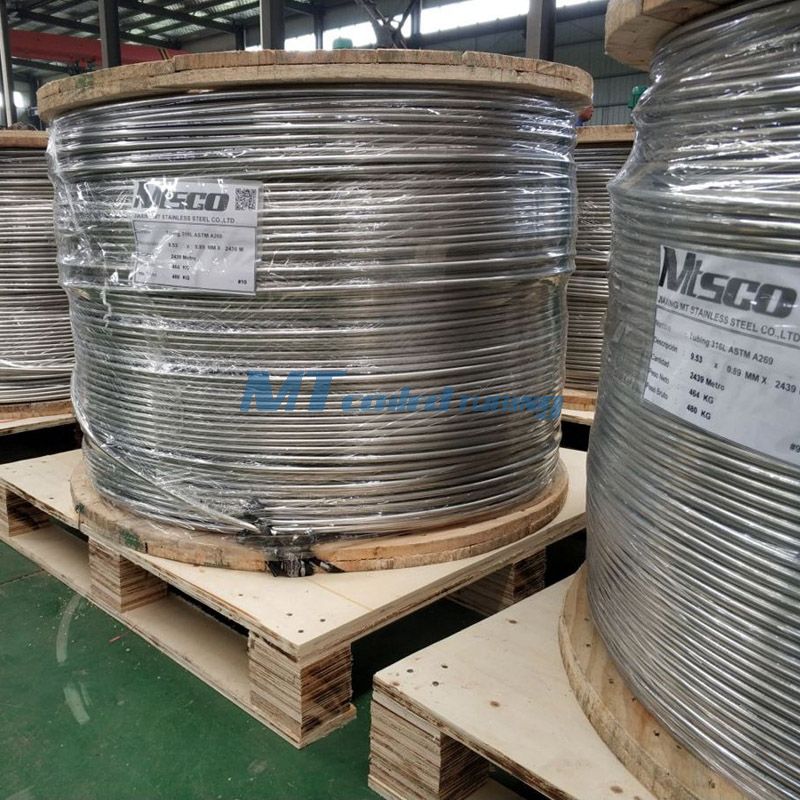

mtsco coiled tubing control line (21) mtsco coiled tubing control line (25)



Terms & Conditions

Price Item

FOB, CFR, CIF or as negotiation

Payment

T/T, LC or as negotiation

Delivery Time

30 working days after received your deposit (Normally according to the order quantity)

Package

Wooden or iron reel or as per customer’s requirement

Quality Requirement

Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable

Quality

Test

NTD(Ultrasonic test, Eddy Current test)

Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test)

Metal Test(Metallographic Analysis, Impact Test-High/low temperature)

Chemical Analysis(Photoelectric Emission Spectroscopic)

Market

Main Market

Europe, Middle East, Southeast Asia, South America. etc



More Details About MTSCO Coiled Tubing :


1 . Our company has been dedicated to producing coiled tubing since 2007, owning complete producing technology and abundant managing experience .

2 . The raw material such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc .

3 . We have advanced NDT equipments for the tests such as Eddy Current test , Ultrasonic test , Hydraulic test and so on .

4 . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , CCS , ABS, DNV,etc , also can be provided according to customers’ requirements .

5 . The tolerance control is strictly accordance to produce standards . Our products are always satisfied with customers . Customers purchased our products created more profits .

6. We have complete after-sale service to deal with the problems in time .
