In the demanding environment of oilfield services, welded coiled tubing systems play a critical role in well intervention, drilling, and production support. These long, continuous lengths of tubing are designed to withstand the intense pressures and mechanical stresses encountered in complex wellbores. However, to ensure that these systems operate reliably, safely, and cost-effectively over time, proper maintenance and regular inspection are absolutely essential.
Welded coiled tubing, despite its robust construction, is still subject to wear, fatigue, corrosion, and physical damage—especially when used in high-pressure or corrosive environments. Neglecting maintenance can lead to performance degradation, costly downtime, and even catastrophic failure in the field.
This article provides a comprehensive and easy-to-understand guide to the best practices for maintaining and inspecting welded coiled tubing systems, helping operators extend the service life of their assets, reduce risk, and ensure safe operations.
Welded coiled tubing is often subjected to thousands of operational cycles. It is repeatedly bent and straightened during spooling and unspooling, exposed to high internal and external pressures, and comes into contact with harsh chemicals, abrasive solids, and extreme temperatures. Over time, these factors contribute to:
Material fatigue and cracking
Corrosion, both internal and external
Mechanical damage from handling or contact
Weld seam deterioration or imperfections
Build-up of scale, debris, or residues inside the tubing
If left unchecked, any of these issues can lead to tubing failure, operational hazards, and environmental risks. That’s why a robust maintenance and inspection program is not just recommended—it’s essential.
One of the most basic yet important maintenance practices is regular cleaning and flushing of the tubing. After each job, the tubing should be flushed thoroughly to remove residues such as scale, sand, chemical deposits, or fluids. This prevents internal blockage, reduces the risk of corrosion, and ensures smooth operation for future deployments.
Using fresh water or a recommended solvent—depending on the chemical nature of the residue—is crucial. If acidic or corrosive fluids were pumped through the tubing, neutralizing agents may be required to prevent chemical attack.
The outer surface of the coiled tubing should also be cleaned of mud, oil, or debris after use. This allows for better visual inspection and prevents environmental corrosion. Where necessary, operators may use non-abrasive brushes or pressure washers to remove build-up from the tubing surface, especially near the weld seam where damage can initiate.
Though not directly related to the tubing itself, support equipment such as reels, injectors, and straighteners must also be properly maintained. Bearings, chains, and drive systems should be cleaned and lubricated according to the manufacturer’s instructions. Any misalignment or malfunction in support systems can lead to uneven stress or accidental damage to the tubing.

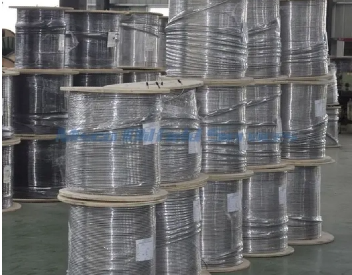

When not in use, coiled tubing should be stored in a dry, covered environment to prevent exposure to moisture, UV radiation, or mechanical damage. Tubing should be reeled with proper tension, and reels should be positioned securely to avoid kinks or bending. Protective caps should be placed on the tubing ends to prevent contamination or entry of foreign materials.
Inspection is more than just a visual glance—it involves scheduled evaluations using standardized techniques and tools to detect and assess defects that may not be visible to the naked eye. The goal is to catch early signs of wear or damage before they become critical.
Visual inspection is the first step in any maintenance routine. Trained personnel should check the tubing for signs of:
Surface scratches or gouges
Bending or denting
Discoloration or rust
Pitting or blistering from corrosion
Weld seam irregularities
Visual inspections should be conducted before and after each deployment, and findings should be documented. While it’s a relatively simple process, it is vital for spotting obvious signs of damage early.
Over time, coiled tubing may undergo changes in wall thickness or diameter due to pressure cycling or corrosion. Using calipers or ultrasonic tools, technicians can measure these dimensions and compare them to baseline readings. A reduction in wall thickness below acceptable limits could signal a need for repair or retirement of the tubing.
More advanced techniques are required to detect internal flaws, cracks, or weld seam defects. Common NDT methods for coiled tubing include:
Eddy Current Testing (ECT): Detects surface and near-surface cracks.
Ultrasonic Testing (UT): Identifies internal flaws or wall thickness variation.
Magnetic Flux Leakage (MFL): Effective in finding corrosion pits or metal loss.
Radiographic Testing (RT): Offers a full internal image, particularly useful at weld seams.
These methods are essential for high-pressure operations where failure could be catastrophic. NDT should be performed at regular intervals based on tubing usage hours, well conditions, and historical wear patterns.
Coiled tubing undergoes bending stress each time it is spooled and unspooled, which can eventually lead to metal fatigue. Fatigue monitoring systems—either manual logs or digital counters—help track how many bending cycles a section of tubing has experienced.
Knowing the fatigue life of the tubing allows operators to retire sections before failure. Some systems even use sensors and software to provide real-time data on fatigue progression.
When damage or excessive wear is detected, decisions must be made regarding repair or replacement. In some cases, minor flaws such as small surface scratches or minor corrosion can be corrected through grinding, passivation, or application of protective coatings.
However, significant damage—such as deep pitting, through-wall cracks, or weld seam failures—usually requires cutting out the affected section and welding in a new segment. This repair must follow industry-approved procedures and undergo post-weld inspection to ensure safety.
If fatigue monitoring or dimensional checks show the tubing has reached the end of its service life, it should be removed from service altogether. Using tubing beyond its fatigue limit or pressure rating can lead to unexpected failure.
An effective maintenance program is built on accurate and thorough documentation. Operators should maintain detailed records for each length of tubing, including:
Date of manufacture and specifications
Usage hours and job history
Inspection results and NDT reports
Repairs or modifications performed
Fatigue monitoring data
Current condition and retirement recommendations
These records not only help in maintenance planning but also serve as compliance documents for safety and operational audits.
Maintenance and inspection are only as effective as the personnel performing them. Technicians should be trained not just in how to perform tasks, but in why they matter. Understanding the failure modes and stress factors of coiled tubing helps staff make informed decisions and recognize early warning signs of trouble.
Regular refresher training, hands-on workshops, and alignment with evolving industry standards (such as API RP 5C7 and ISO 13628-6) are essential.
Welded coiled tubing is a high-value asset in the oil and gas industry, capable of performing complex operations under extreme conditions. But like all equipment, it requires diligent care. A proactive approach to maintenance and inspection not only extends the life of your tubing but also improves safety, reduces downtime, and enhances overall operational efficiency.
By combining routine care with advanced inspection techniques, operators can make informed decisions about when to deploy, repair, or retire tubing. Keeping up with training, documentation, and best practices ensures that coiled tubing systems remain reliable and safe throughout their lifecycle.
