MTSCO offers welded coiled tubing in lengths of up to 50,000 ft per coil. MTSCO integrates manufacturing, inspection, packaging, and delivery into a single process, enabling customers to streamline procurement and project execution more efficiently.
| Quantity: | |
|---|---|
ASTM A789 Cold Rolled Duplex Steel S32750 2507 Heat Coil Tube
Company Profile
MTSCO is a manufacturing and supply platform for industrial piping systems. Our business encompasses a wide range of stainless steel and nickel alloy piping products. In 2024, MTSCO established its own manufacturing facility, Siri Tubing, which specializes in the production of welded coiled tubing, capillary tubes, control line tubing, multi-core tubing, and cables. We offer welded coiled tubing in lengths of up to 50,000 ft per coil. MTSCO integrates manufacturing, inspection, packaging, and delivery into a single process, enabling customers to streamline procurement and project execution more efficiently. If you are evaluating solutions for control line or welded coiled tubing, please contact MTSCO to discuss your specific requirements.
 |  |
Manufacturing Process Flow
The production of welded coiled tubing begins with steel strip. Incoming materials undergo material and surface inspections, followed by strip butt welding, cleaning, tube forming, and laser welding. Subsequent steps include sizing, cold drawing, in-line bright annealing, in-line eddy current testing, and hydrostatic or air tightness testing. The process concludes with precision coiling, marking, final inspection, packaging, and shipment. MTSCO’s welded coiled tubing is produced according to this comprehensive process, with critical control points managed through process cards.
Specifications Of 2507 Heat Coil Tube
Item | Details |
Product Type | Heat Coil Tube / Control Line Tubing |
Material Grade | S332750/2507 (316/316L/316Ti, 304/304L, S31803/2205, alloy 625, alloy 825 available) |
Outer Diameter | 3.18-38.1mm (1/8"-11/2") |
Wall Thickness | 0.4–2.54 mm (0.016–0.1") |
Length | <15000 m (<50,000 ft) |
Standards | ASTM A789 |
Manufacturing Process | 100% Laser Welding, Cold Drawing, Bright Annealing |
Pressure Test | Conventional 5000 PSI / Max. 15000 PSI |
Inspection | Appearance, PMI, Size, Airtightness, ET, Hydro Pressure Test |
Certificates | ISO |

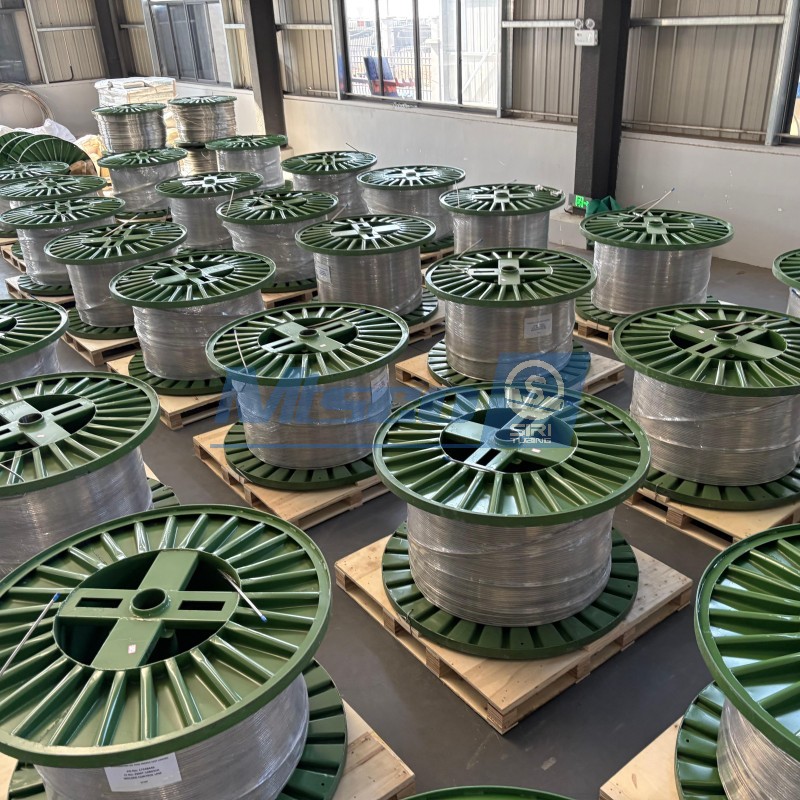

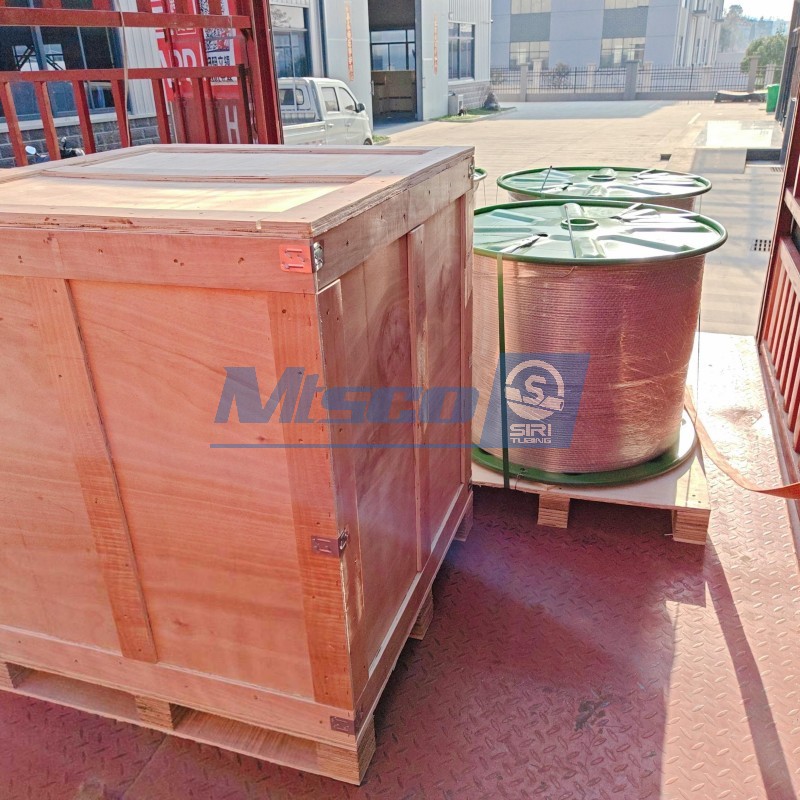

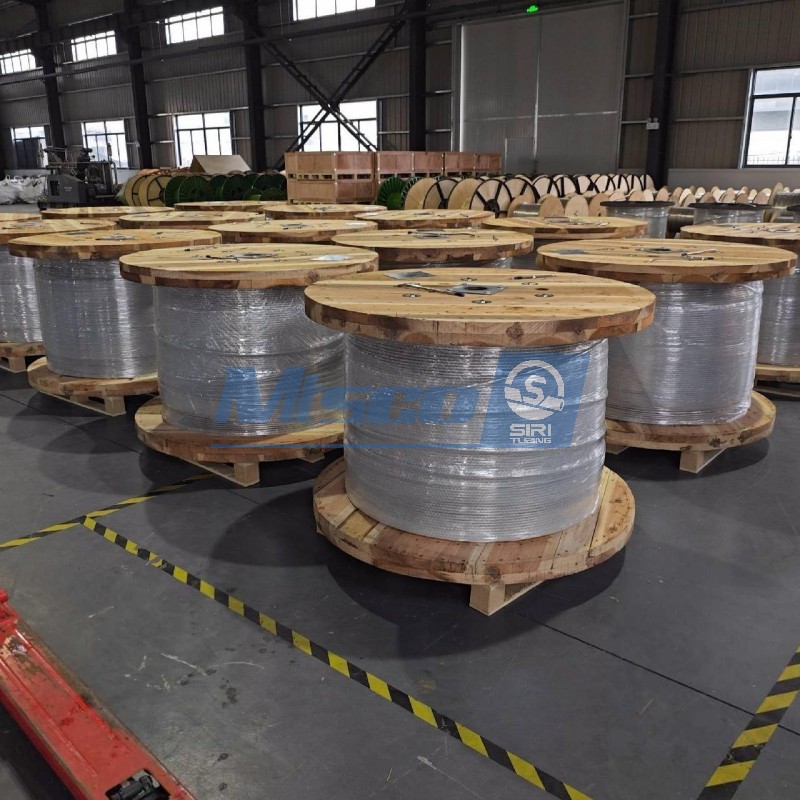

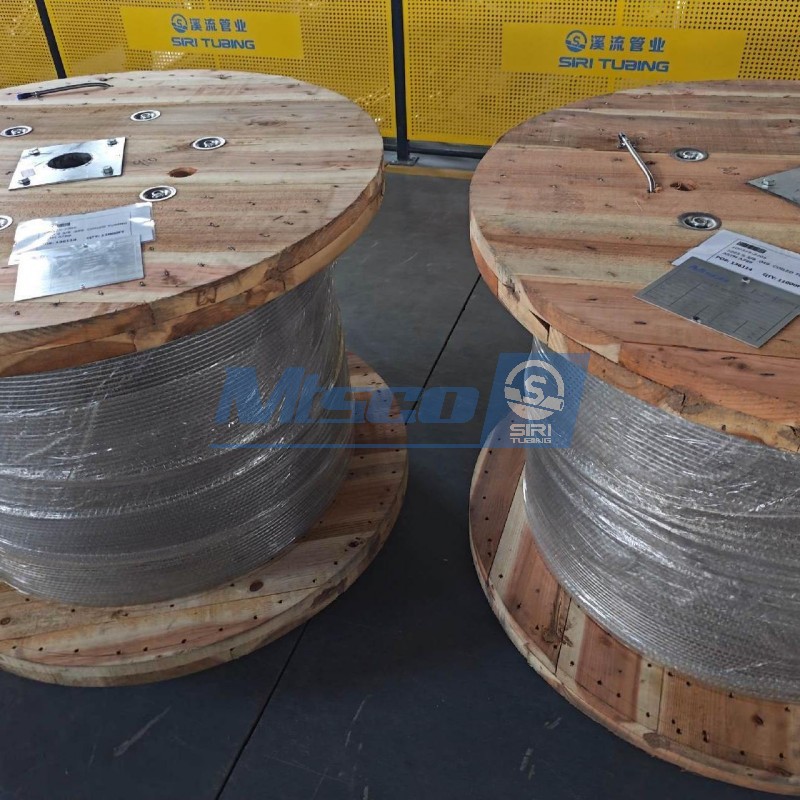

Packaging | Plastic Reel, Wooden Reel, Solid Wooden Reel, Iron Reel, Wooden Box |
Optional Service | Encapsulation, Customized Length, Third-party Inspection |
Siri Laboratory
Siri Tubing is equipped with the following laboratories:
Weld Radiographic Test Laboratory (RT)
Chemical Composition Analysis Laboratory
Intergranular Corrosion Test Laboratory
Tensile Test Laboratory
Hardness Test Laboratory
Metallographic Laboratory
The Siri Laboratory is equipped with tensile testing machines, impact testing machines, metallographic microscopes, hardness testers, and other equipment, enabling mechanical property testing such as tensile, flanging, flattening, bending, and hardness tests. The laboratory also covers RT, chemical composition, intergranular corrosion, tensile, hardness, and metallographic analysis testing. Test reports and samples are archived for record-keeping.
Material Properties of 2507
2507 is a duplex stainless steel that combines high strength with excellent corrosion resistance, making it particularly suitable for applications requiring superior resistance to chloride corrosion and high structural strength. It is commonly used in marine environments, chloride-containing media, and systems demanding both pressure-bearing capacity and corrosion resistance. For control line projects requiring a balance between strength and corrosion resistance, 2507 is a common choice.
Quality Control System
· Secondary Inspection of Raw Materials: Raw materials are sourced from suppliers such as POSCO, JISCO, Outokumpu, and TSINGSHAN. Upon arrival, each batch undergoes PMI and related inspections. MTSCO employs a secondary verification process to minimize the risk of material mix-ups.
· Production Process Traceability: From laser welding, cold drawing, and bright annealing to plastic encapsulation, each process is supervised by the QC team and documented with photographs. MTSCO ensures traceability of manufacturing records through process card management.
· 100% Pre-shipment Inspection: Finished products must undergo inspections including appearance, dimensional checks, PMI, ET, and pressure testing. MTSCO also accepts third-party inspections by SGS, TÜV, and BV to facilitate project acceptance.
FAQ
Q1: What materials are commonly used for these products?
A1: Common materials include 304, 316, 2205, 2507, Alloy 625, and 825. MTSCO can select materials based on the medium, pressure, and corrosive environment.
Q2: What inspections are performed before shipment?
A2: Standard inspections include visual inspection, PMI, dimensional inspection, ET testing, and pressure testing (hydraulic/pneumatic).
Q3: In which industries are the products suitable for use?
A3: They are primarily used in the oil and gas, geothermal, heat exchanger, and shipbuilding industries, and can also be used in complex environments such as deep-sea and underground applications. MTSCO has extensive experience in supplying these products.
