MTSCO offers welded coiled tubing in lengths of up to 50,000 ft per coil. MTSCO integrates manufacturing, inspection, packaging, and delivery into a single process, enabling customers to streamline procurement and project execution more efficiently.
| Quantity: | |
|---|---|

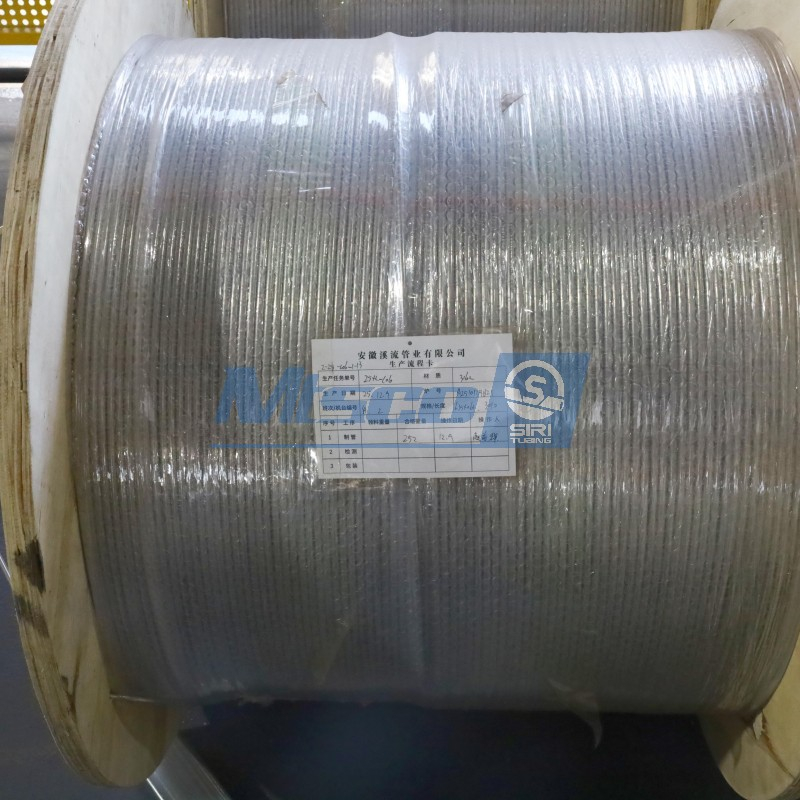

316 Stainless Steel Heat Coil Tube 3/4 inch with wooden reel Packing
Company Profile
MTSCO is a manufacturing and supply platform for industrial piping systems. Our business encompasses a wide range of stainless steel and nickel alloy piping products. In 2024, MTSCO established its own manufacturing facility, Siri Tubing, which specializes in the production of welded coiled tubing, capillary tubes, control line tubing, multi-core tubing, and cables. We offer welded coiled tubing in lengths of up to 50,000 ft per coil. MTSCO integrates manufacturing, inspection, packaging, and delivery into a single process, enabling customers to streamline procurement and project execution more efficiently. If you are evaluating solutions for control line or welded coiled tubing, please contact MTSCO to discuss your specific requirements.
 |  |
|---|
Product Advantages
· Longer continuous lengths, fewer joints: Welded coils can reach up to 50,000 ft per coil, reducing the number of intermediate joints and simplifying installation.
· Higher pressure testing, suitable for high-pressure applications: Products undergo 100% high-pressure testing, typically at 5,000 PSI, with a maximum of 15,000 PSI / 100 MPa.
· Wide range of materials for flexible selection: Common materials available include 304, 316, 2205, 2507, Alloy 625, and 825.
· Comprehensive inspection process for easy traceability: Records are maintained at every stage, from raw material re-inspection to finished product testing, facilitating acceptance and traceability.
· Support for third-party inspections and various packaging options: Accepts inspections by SGS, TÜV, and BV, and offers multiple packaging methods.
· In-house manufacturing ensures efficient delivery coordination: As a vertically integrated manufacturer, Siri Tubing coordinates production, inspection, packaging, and delivery.
Specification Of 304 Heat Coil Tube
Item | Details |
Product Type | Heat Coil Tube/ Control Line Tubing |
Material Grade | 316/316L/ 316Ti (304/304LS31803/2205, S332750/2507, alloy 625, alloy 825 available) |
Outer Diameter | 3.18-38.1mm (1/8"-11/2") |
Wall Thickness | 0.4–2.54 mm (0.016–0.1") |
Length | <15000 m (<50,000 ft) |
Standards | ASTM A269 |
Manufacturing Process | 100% Laser Welding, Cold Drawing, Bright Annealing |
Pressure Test | Conventional 5000 PSI / Max. 15000 PSI |
Inspection | Appearance, PMI, Size, Airtightness, ET, Hydro Pressure Test |
Certificates | ISO |

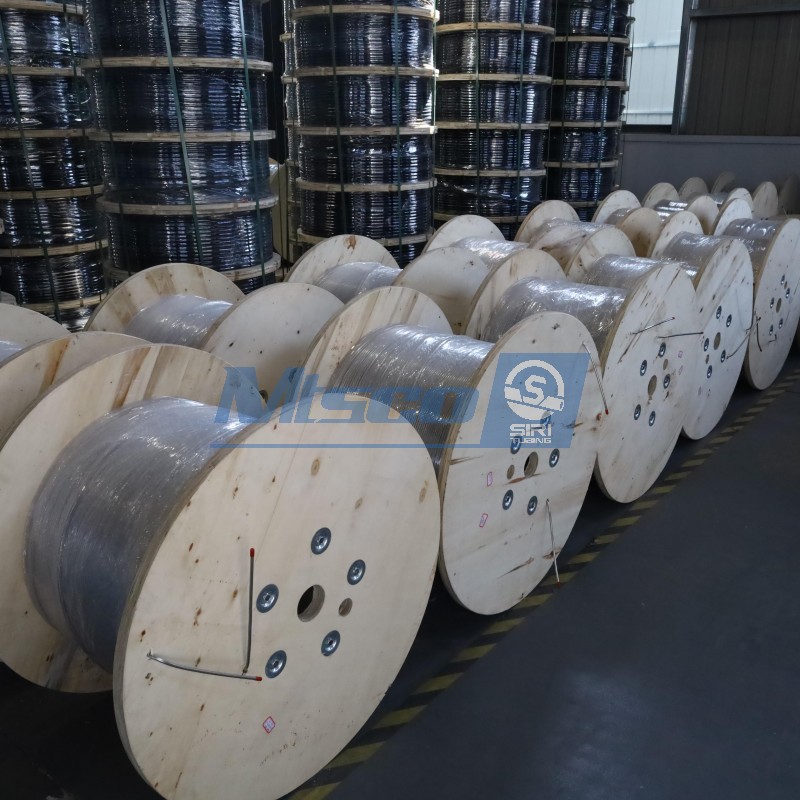

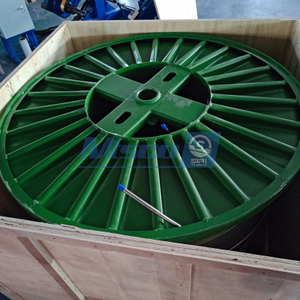

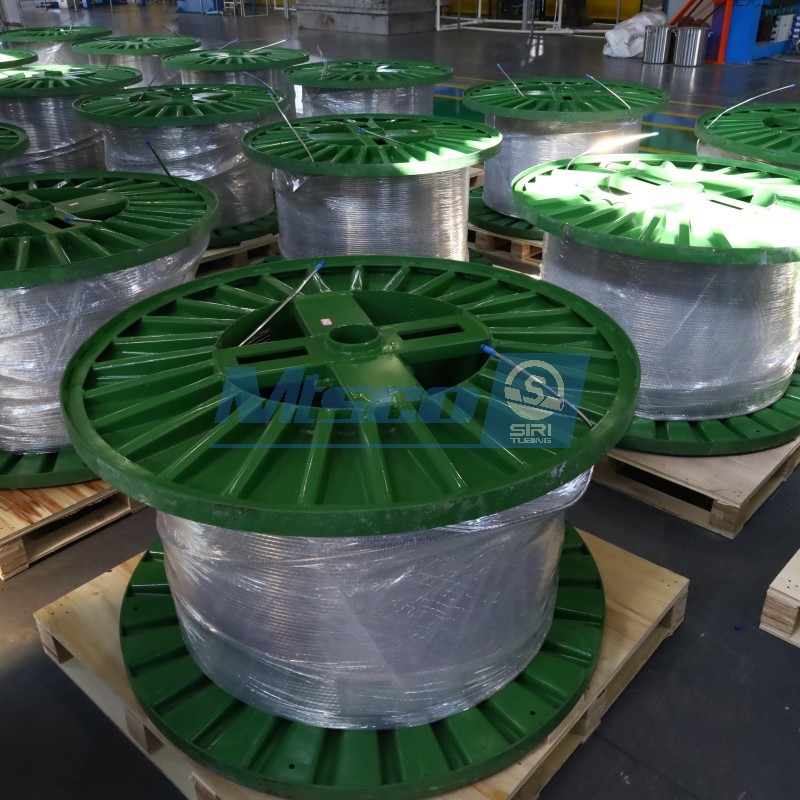

Packaging | Plastic Reel, Wooden Reel, Solid Wooden Reel, Iron Reel, Wooden Box |
Optional Service | Encapsulation, Customized Length, Third-party Inspection |
Application Scenarios
Control line and welded coiled tubing are primarily used in oil and gas, geothermal, heat exchanger, and shipbuilding applications, and are also suitable for complex installation environments such as deep-sea and underground settings where maintenance costs are high. These products typically require continuous lengths, stable pressure resistance, and consistent weld quality to reduce on-site joint risks and construction costs. MTSCO’s control line has long served these industrial applications, and we can also provide customization based on length, material, and plastic sealing requirements.
Single Process Introduction—Laser Welding
Laser welding is one of the key processes in welded coiled tubing production, directly affecting weld quality, dimensional stability, and the results of subsequent processing. It is a welding method that focuses a high-energy laser beam on the metal joint area, causing the material to melt rapidly within a small area and form a weld. Compared to traditional welding, laser welding offers more concentrated heat input and faster welding speeds. MTSCO’s welded coiled tubing production process incorporates 100% laser welding, better meeting requirements for continuous length and consistent quality.
Quality Control System
1.Secondary Inspection of Raw Materials: Raw materials are sourced from suppliers such as POSCO, JISCO, Outokumpu, and TSINGSHAN. Upon arrival, each batch undergoes PMI and related inspections. MTSCO employs a secondary verification process to minimize the risk of material mix-ups.
2.Production Process Traceability: From laser welding, cold drawing, and bright annealing to plastic encapsulation, each process is supervised by the QC team and documented with photographs. MTSCO ensures traceability of manufacturing records through process card management.

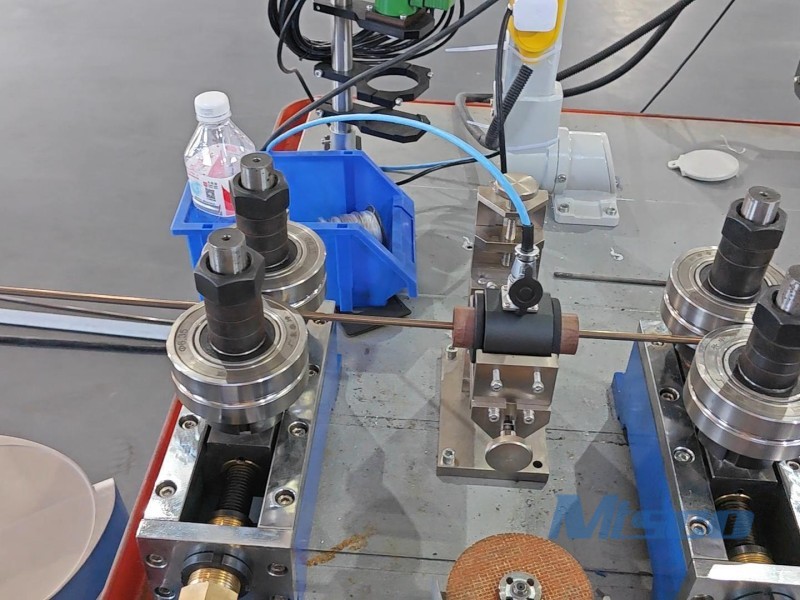

3.100% Pre-shipment Inspection: Finished products must undergo inspections including appearance, dimensional checks, PMI, ET, and pressure testing. MTSCO also accepts third-party inspections by SGS, TÜV, and BV to facilitate project acceptance.
FAQ
Q3: What is the maximum length available?
A3: Welded coils can be less than 15,000 meters in length, with a maximum of 50,000 ft per coil. Longer continuous lengths help reduce on-site joints.
Q4: Can you produce plastic-sealed control lines?
A4: Yes. MTSCO offers plastic-sealing materials including FEP, PVDF, Rilsan PA 11, and Santoprene TPV.
Q10: Why is traceability a key focus for projects?
A10: Because records of raw materials, production, testing, and shipping directly impact acceptance and subsequent verification. MTSCO retains test reports, test specimens, and process images to facilitate traceability.
