ASTM A789 2507/2205 Duplex Steel Cold Rolled ESP Spooling Capillary Tube
Material: S32205, S32750, TP316/L, TP304/L, Alloy 825/N08825, Alloy 400/ N04400, Alloy 625/ N06625
Outer Diameter: 4mm-25mm
Wall Thickness: 0.3mm-2.5mm
Hole count: Single/Multi Core
Length : According to customers' needs, up to 10000m
Standard: ASTM A269/A213/A789/B704/B163,etc.
Certificate: ISO/CCS/DNV/BV/ABS, etc.
Inspection: NDT; Hydrostatic test

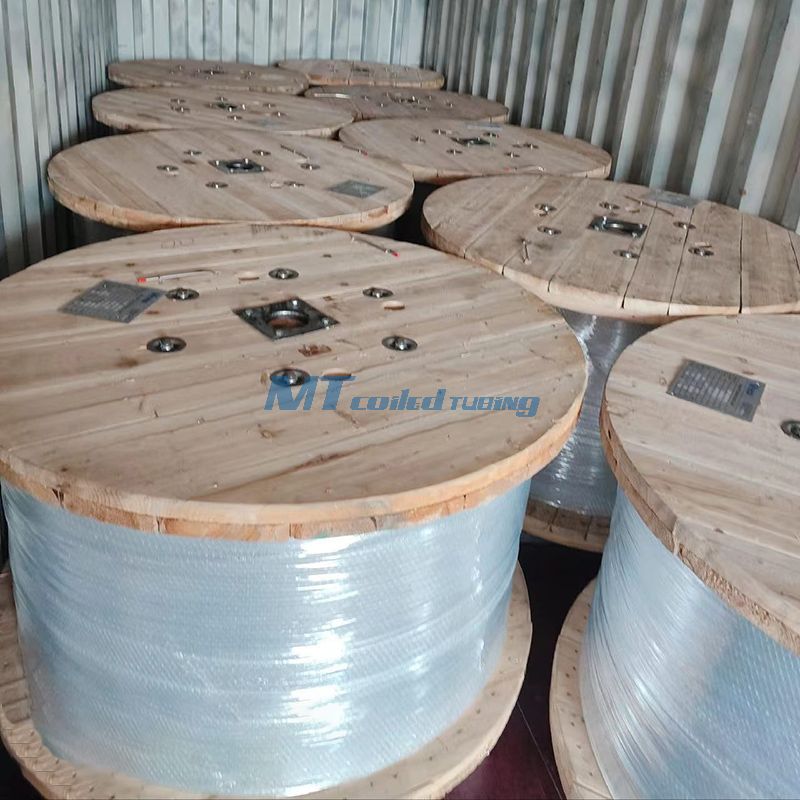

Package: Wooden or iron reel
UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
max | max | max | max | max | ||||||
S31803 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
2205 | ||||||||||
S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
2507 | ||||||||||
S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
 |  |
MTSCO has been supplying control line to the heat exchanger/ oil and gas industry for more than a decade. In recent years, we have continued to make breakthroughs in the field of coiled tubing, downhole control lines, and chemical injection control lines. Our control line has been successfully used in kinds of heat exchanger, certain harsh subsea and downhole conditions, and through continuous research and development, is able to meet the stringent quality requirements of oil field and other industries.
Terms & Conditions | Price Item | FOB, CFR, CIF or as negotiation |
Payment | T/T, LC or as negotiation | |
Delivery Time | 30 working days after received your deposit (Normally according to the order quantity) | |
Package | Wooden or iron reel or as per customer’s requirement | |
Quality Requirement | Mill Test Certificate will be supplied with shipment, Third Part Inspection is acceptable | |
Quality | Test | NDT(Ultrasonic test, Eddy Current test) |
Mechanical Test(Tension Test, Flaring Test, Flattening Test, Hardness Test, Hydraulic test) | ||
Metal Test(Metallographic Analysis, Impact Test-High/low temperature) | ||
Chemical Analysis(Photoelectric Emission Spectroscopic) | ||
Market | Main Market | Europe, Middle East, Southeast Asia, South America. etc |
