In the complex and demanding realm of well intervention projects within the oil and gas industry, efficiency is not just a desirable trait but a necessity. The ability to carry out operations swiftly, safely, and cost - effectively can significantly impact the overall success of a project. One technology that has emerged as a game - changer in this regard is welded coiled tubing. This article delves deep into understanding how welded coiled tubing revolutionizes well intervention projects, the process of coil tubing welding, and the importance of coil tubing welding certification.
The concept of coiled tubing has a rich history that dates back to the mid - 20th century. Initially developed to address the need for a continuous conduit in wellbore operations, it has since evolved into an indispensable tool. In the early 1960s, the first fully functional coiled tubing unit was developed by the California Oil Company and Bowen Tools for washing out sand bridges in wells. At that time, the tubing strings were fabricated by butt - welding 50 ft. sections of 1 3/8 in. od pipe into a 15,000 ft. string and spooling it onto a reel. Since then, significant advancements have been made in both the equipment and the tubing itself.

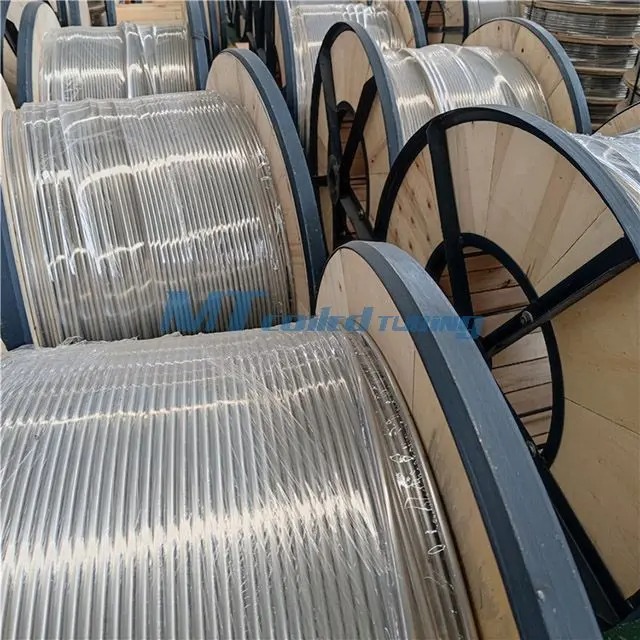

Coiled tubing is a continuous, flexible steel pipe that is spooled on a reel. This design allows for rapid deployment and retrieval compared to traditional jointed pipes, which require time - consuming connections and disconnections. The flexibility of coiled tubing enables it to traverse complex well paths, including horizontal sections and dog legs, with relative ease.
Early coiled tubing operations faced numerous challenges, especially related to the quality and integrity of the tubing strings. The use of multiple butt welds in the fabrication of tubing strings often led to failures. As the industry evolved, the demand for more reliable and longer - lasting coiled tubing grew. Welded coiled tubing emerged as a solution to these problems. By using advanced welding techniques, manufacturers can produce coiled tubing with fewer welds, or in some cases, no butt welds at all. This significantly improves the strength and integrity of the tubing, making it more suitable for the harsh conditions of well intervention projects.
Orbital welding is a highly precise welding method used in the production of welded coiled tubing. In this process, the welding torch rotates around the tube in a circular motion, creating a uniform and high - quality weld. This type of welding is ideal for joining tube - to - tube sections, ensuring that the weld has consistent strength and integrity along the circumference of the tube. For example, Webco Industries uses a combination of the highest - quality strip splice and tube - to - tube orbital welds to produce long - length coiled tubing.
Laser welding is another advanced technique employed in the manufacturing of welded coiled tubin. Laser - welded coiled tubing, such as Webco's Laser Line® seam - welded coiled tubing, offers several advantages. The high - energy laser beam creates a narrow, deep weld with minimal heat - affected zone. This results in a stronger weld that can better withstand the harsh environments of upstream oil and gas, geothermal, and downhole applications. The laser - welding process also allows for precise control over the welding parameters, enabling the production of tubing with tight tolerances.
One of the most significant ways welded coiled tubing improves efficiency in well intervention projects is through faster deployment and retrieval. Since welded coiled tubing is a continuous length of tubing, there is no need to spend time making and breaking connections as with jointed pipes. In a well cleanout operation, for instance, a coiled tubing unit can quickly lower the welded coiled tubing into the wellbore. The injector head, which is a key component of the coiled tubing unit, can run the tubing into the well at high speeds. Some modern injector heads can deploy coiled tubing at rates of up to several hundred feet per minute. This rapid deployment reduces the overall time spent on mobilizing the equipment and getting the operation started, which is crucial in minimizing production downtime.
Operation | Jointed Pipe Time (approx.) | Welded Coiled Tubing Time (approx.) |
Deployment in a 5000 - ft well | 4 - 6 hours | 1 - 2 hours |
Retrieval from a 5000 - ft well | 3 - 5 hours | 1 - 1.5 hours |
The flexibility of welded coiled tubing allows it to reach areas within the wellbore that are difficult to access with traditional jointed pipes. In highly deviated or horizontal wells, welded coiled tubing can navigate through the complex well paths with ease. This is especially important for operations such as well logging, where accurate data collection from all parts of the wellbore is essential. For example, in a horizontal well with multiple branches, welded coiled tubing can be directed into each branch to perform logging operations, providing a more comprehensive understanding of the reservoir. This enhanced wellbore access enables more targeted well intervention, leading to more efficient use of resources and better overall project outcomes.
Welded coiled tubing offers a high degree of operational flexibility in well intervention projects. It can be used for a wide range of applications, including well cleanouts, acid stimulation, hydraulic fracturing, and fishing operations. In a well cleanout operation, high - pressure fluids can be pumped through the welded coiled tubing to remove sand, scale, or other debris from the wellbore. In acid stimulation, the tubing can precisely deliver acid to the targeted formation zones, enhancing reservoir permeability. The ability to switch between different operations quickly using the same welded coiled tubing unit reduces the need for multiple specialized pieces of equipment, further improving efficiency.
Safety is a top priority in any well intervention project, and welded coiled tubing contributes significantly to this aspect. With fewer connections compared to jointed pipes, the risk of leaks and failures is reduced. In high - pressure wellbore environments, a single connection failure can lead to a dangerous situation. Welded coiled tubing, with its seamless or near - seamless design, minimizes this risk. Additionally, modern coiled tubing units are equipped with advanced safety systems, such as blowout preventers (BOPs) and pressure safety valves, which work in tandem with the reliable welded coiled tubing to ensure safe operations.
In the production of welded coiled tubing, coil tubing welding certification plays a crucial role. Certification ensures that the welding processes used meet industry - recognized standards. For example, a manufacturer with coil tubing welding certification has demonstrated that their welding procedures are capable of producing high - quality welds that can withstand the mechanical and environmental stresses of well intervention projects. Certification also gives end - users confidence in the quality and reliability of the welded coiled tubing they are purchasing. In the oil and gas industry, where the consequences of equipment failure can be severe, this confidence is invaluable.
There are several international and industry - specific standards for coil tubing welding certification. Some of the commonly recognized standards include ISO (International Organization for Standardization) standards, which cover aspects such as quality management systems in welding. In the oil and gas sector, standards set by organizations like the American Petroleum Institute (API) are also important. These standards specify requirements for the design, manufacture, and testing of coiled tubing and its associated welding processes. A manufacturer seeking coil tubing welding certification must demonstrate compliance with these standards through a series of tests and audits.
To obtain coil tubing welding certification, manufacturers typically undergo a rigorous auditing and testing process. This may include visual inspection of welds for surface defects, non - destructive testing (NDT) methods such as ultrasonic testing and eddy - current testing to detect internal defects, and mechanical testing to evaluate the strength of the welds. For example, samples of welded coiled tubing may be subjected to tensile tests to determine the weld's ability to withstand pulling forces. The auditing process also includes an assessment of the manufacturer's quality control systems, including how they manage welding procedures, welder qualifications, and record - keeping.
The use of welded coiled tubing can lead to significant cost savings in well intervention projects. Since it enables faster deployment and retrieval, there is less time spent on site, reducing rental costs for equipment such as coiled tubing units and associated support vehicles. The reduced need for labor to make and break connections, as in the case of jointed pipes, also cuts down on labor costs. In a large - scale well intervention project involving multiple wells, these cost savings can quickly add up. For example, if a project requires intervention in 10 wells, and each well intervention with welded coiled tubing saves 2 hours of equipment rental time and 4 hours of labor time compared to using jointed pipes, the overall cost savings can be substantial.
Welded coiled tubing, with its improved integrity due to advanced welding techniques, has a longer service life compared to coiled tubing with multiple butt welds. This means fewer maintenance requirements and less frequent replacements. In a well intervention project, the cost of replacing a damaged or worn - out coiled tubing string can be significant, especially if it requires mobilizing additional equipment and personnel. By using welded coiled tubing, operators can reduce these maintenance and replacement costs over the long term.
Q: What is the difference between welded coiled tubing and traditional coiled tubing?
A: Welded coiled tubing uses advanced orbital/laser welding for stronger, fewer welds vs. traditional tubing's multiple butt welds..
Q: How does the welding process affect the strength of coiled tubing?
A: Advanced techniques create uniform welds with strength matching base metal, reducing stress points.
Q: Do all manufacturers of welded coiled tubing have coil tubing welding certification?
A: No, certification is voluntary—recommended but not universal.
Q: Can welded coiled tubing be used in all types of well intervention projects?
A: Versatile for most projects but may require adjustments for extreme conditions (e.g., geothermal).
Q: How does the cost of welded coiled tubing compare to traditional coiled tubing?
A: Higher initial cost but long-term savings from durability and reduced maintenance.
In conclusion, welded coiled tubing has emerged as a revolutionary technology in the field of well intervention projects. Through its ability to enable faster deployment and retrieval, enhanced wellbore access, increased operational flexibility, and improved safety, it has significantly improved the efficiency of these projects. The advanced coil tubing welding techniques used in its production, along with the importance of coil tubing welding certification, ensure the quality and reliability of the tubing. Case studies have demonstrated the tangible benefits of using welded coiled tubing in terms of cost - savings and improved productivity. As the oil and gas industry continues to seek more efficient and sustainable ways to carry out well intervention projects, welded coiled tubing is likely to play an even more prominent role in the future.
