ASTM A269 Stainless Steel Welded Encapsulated Tubing for Downhole Tools

Availability:
Quantity:

ASTM A269 Stainless Steel Welded Encapsulated Tubing for Downhole Tools



Material:  TP304/L, TP316/L, S32205, S32507, Alloy 825/N08825, Alloy 400/ N04400, Alloy 625/ N06625

Outer Diameter: 1/4'', 3/8'', 1/2''

Wall Thickness: 0.035'', 0.049'', 0.065''

Hole count: Single/Multi Core

Length : According to customers' needs, up to 33000fts/coil

Standard: ASTM A269/A213/A789/B704/B163,etc.

Certificate: ISO/CCS/DNV/BV/ABS, etc.

Inspection: NDT; Hydrostatic test

Package: Wooden or iron reel



Application of Encapsulated Coiled Tubing


The tubing made from (duplex) stainless steels is not corrosion-resistant to all environments. The tubing performance is heavily influenced, as well as lifetime of tubing decreases.

The encapsulation is used as a protective layer for keeping metal tubing from various aggressive chemical environments. And to enhancing the corrosion resistance performance of the entire coiled tubing.


Encapsulation Materials:

Plastic Packaging Materials

Abbreviation

Temperature

Ethylene Tetrafluoroethylene

ETFE

-60℃~150℃

Fluoronated Ethylene Propylene

FEP

-110℃~200℃

High Density Polyethylene

HDPE

-60℃~100℃

Perfluoroalkoxy

PFA

-80℃~260℃

Modified Polypropylene

PP

30℃~150℃

Polyvinylidene Fluoride

PVDF

-30℃~150℃

Thermoplastic Vulcanizating

TPV

-30℃~150℃

Nylon11

PA11

-30℃~150℃

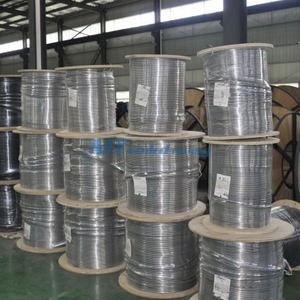

control line mtsco (13) control line mtsco (46)


More Details About MTSCO Encapsulated Tubing :

1 . Our company has been dedicated to producing coiled tubing since 2007, owning complete producing technology and abundant managing experience .

2 . The raw material such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc .

3 . We have advanced NDT equipments for the tests such as Eddy Current test , Ultrasonic test , Hydraulic test and so on .

4 . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , CCS , ABS, DNV,etc , also can be provided according to customers’ requirements .

5 . The tolerance control is strictly accordance to produce standards . Our products are always satisfied with customers . Customers purchased our products created more profits .

6. We have complete after-sale service to deal with the problems in time .


MTSCO has been supplying encapsulated tubing to the heat exchanger/ oil and gas industry for more than a decade. In recent years, we have continued to make breakthroughs in the field of coiled tubing, downhole control lines, and chemical injection control lines. Our control line has been successfully used in kinds of heat exchanger, certain harsh subsea and downhole conditions, and through continuous research and development, is able to meet the stringent quality requirements of oil field and other industries.
